Wharfedale Pro DP-8015i Amplifier | Wharfedale Power Amplifier for PA Systems
This Wharfedale Pro product delivers dependable performance for professional PA and live sound systems.

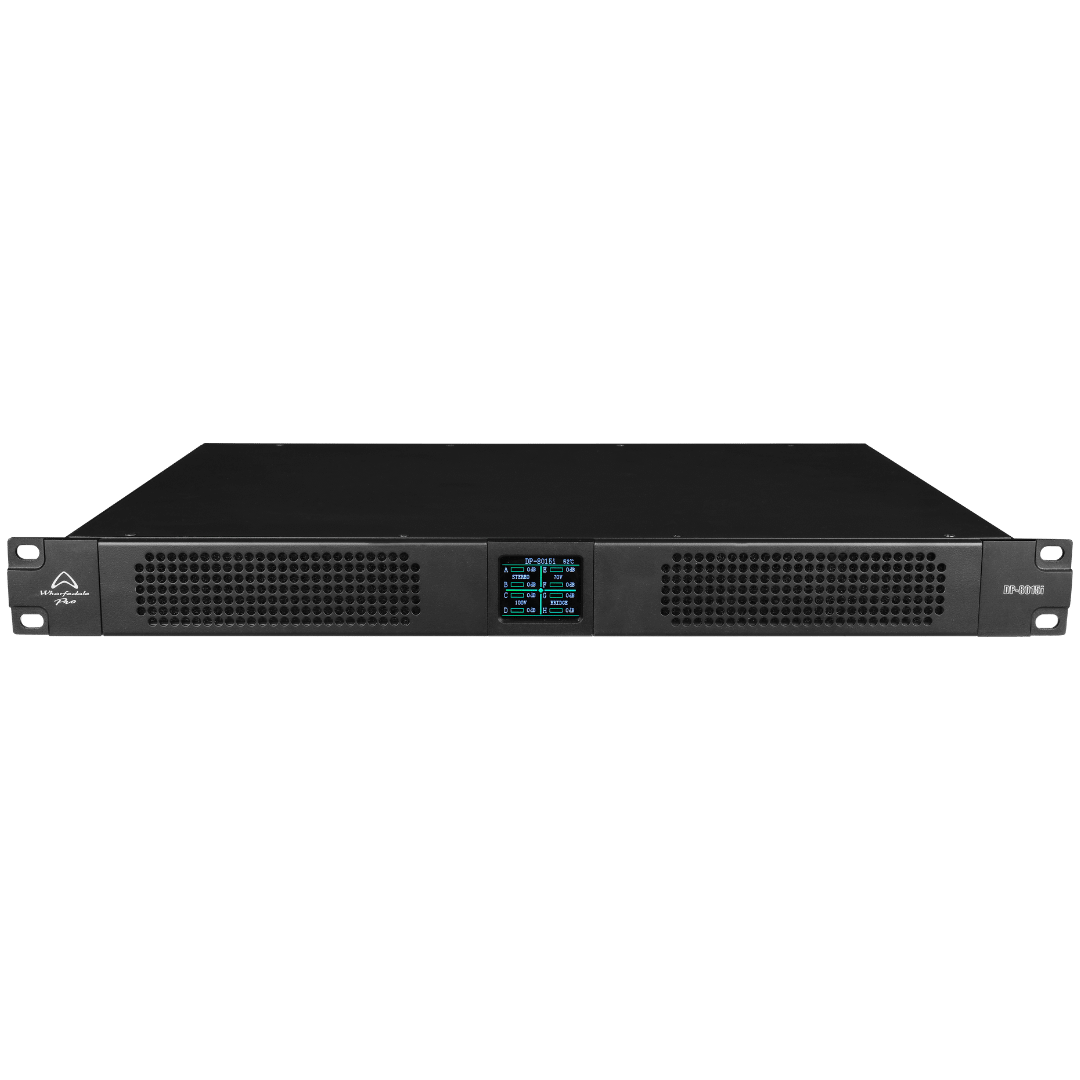

The Wharfedale Pro DP-8015i Amplifier is an 8-channel amplifier from our DP-i Series, engineered for professional fixed installations requiring flexible routing, reliable performance and intuitive control.
Delivering 150 W per channel across low-impedance (2–8 Ω) and high-impedance (70 V/100 V) systems, it can also operate in Bridge mode for up to 4 x 300 W, offering outstanding adaptability for complex multi-zone setups. A 1.8″ colour display on the front panel provides quick access to system status and configuration, while a removable grille allows for easy maintenance and a clean, professional appearance.
Equipped with GPIO functionality for remote control and linking, along with Phoenix connectors for inputs, outputs and remote level adjustment, installation is simple and secure. With built-in protection against overload, short-circuit and thermal faults, the compact 1U DP-8015i delivers dependable power and precision for professional installation environments.
| Specification | Value |
|---|---|
| Amp Channels | 8 |
| Topology | Class D |
| Stable at 2 Ohms | Yes |
| 8Ω | 8 x 150 W |
| 4Ω | 8 x 150 W |
| 2Ω | 8 x 150 W |
| 16Ω Bridged | 4 x 300 W |
| 8Ω Bridged | 4 x 300 W |
| 4Ω Bridged | 4 x 300 W |
| Control | GPIO |
| Input Connectors | Phoenix MC 1, 5/12-ST-3, 81 |
| Output Connectors | Phoenix PC 5/8-STF1-7, 62 |
| Link Connectors | Phoenix MC 1, 5/6-ST-3, 81 |
| Mode Switch | Lo-Z / Hi-Z / 100 V / 70 V / Mono / Bridge Mode |
| Hi-Z | Yes |
| 100V Hi-Z | 8 x 150 W |
| 70V Hi-Z | 8 x 150 W |
| Input Gain/Sensitivity Switch | 0.775 V / 1 V |
| Slew Rate | >50 V / us |
| Output RMS Voltage (V) | 34.7 V |
| THD+N | Typical : 0.05% (10% Rated Power, 8 Ω) |
| Crosstalk | ≥70 dB (20 Hz-1 kHz, Below Rated Power) |
| Amplifier Frequency Response | Lo-Z Typical: ±0.5 dB (10% Rated Power, 20 Hz-20 kHz) Hi-Z Typical: ±0.5 dB (10% Rated Power, 40 Hz-16 kHz) |
| Amplifier Input Impedance | 20 kΩ (Balanced), 10 kΩ (Unbalanced) |
| Damping Factor | Typical: 300 (20 Hz-200 Hz, Lo-Z, 8 Ω) |
| SNR | ≥100 dB (A weighted, 20 Hz-20 kHz, 8 Ω) |
| Protection | Under voltage, DC, Over temperature, Limiter, Overload, Short. |
| Main Power | 100-240 V AC. ±10%, 50/60 Hz |
| Included Accessory | User Manual, 4 x rubber feet, 10 x 6P Plug-in connector, pitch:3.81 mm, 4 x 4P Plug-in connector, pitch: 7.62 mm, AC Power cord |
| Unpacked – Height (mm) | 45 |
| Unpacked – Width Front (mm) | 483 |
| Unpacked – Width Rear (mm) | 483 |
| Unpacked – Depth (mm) | 340 |
| Packed – Height (mm) | 125 |
| Packed – Width Front (mm) | 510 |
| Packed – Width Rear (mm) | 510 |
| Packed – Depth (mm) | 565 |
| Weight – Nett (Kg) | 6 |
| Weight – Gross (Kg) | 7.7 |
