Wharfedale Pro CPD4800 Amplifier | Wharfedale Power Amplifier for PA Systems
Wharfedale Pro CPD4800 Amplifier | Wharfedale Power Amplifier for PA Systems
Couldn't load pickup availability
Earth Shaking Audio – Suitable for mobile use, touring, rental and installation

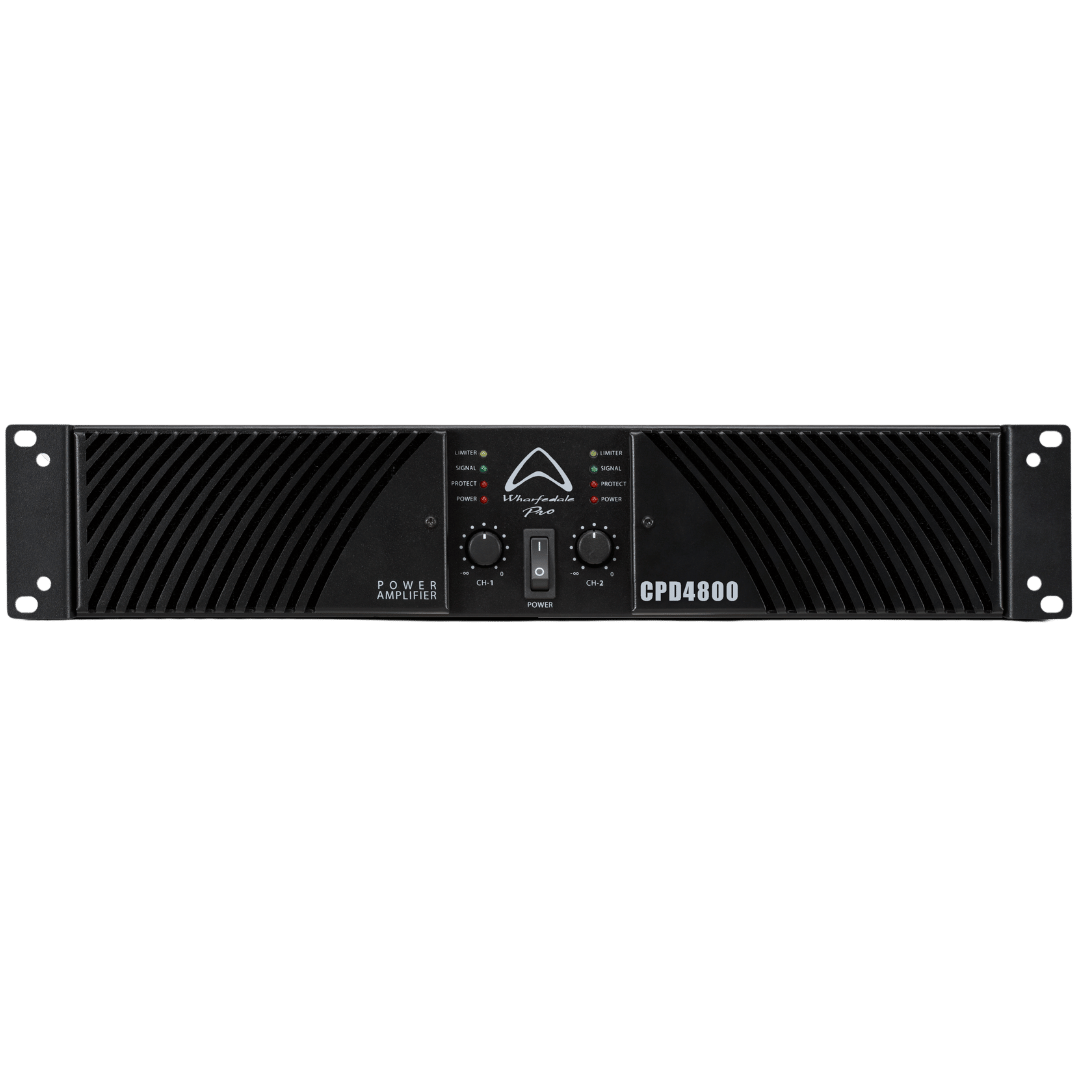

The Wharfedale Pro CPD4800 Amplifier is a 2-channel amplifier from our CPD Series, designed for touring, rental and installation environments that demand maximum power, reliability and ease of maintenance.
Delivering 1000 W per channel at 8 Ω, 1500 W at 4 Ω and up to 3000 W bridged at 8 Ω, it uses Class H topology for superior efficiency, reduced heat and consistent performance across demanding applications. A heavy-duty toroidal transformer ensures stable power delivery even in fluctuating AC conditions, while protection circuitry guards against thermal, overcurrent, DC and short-circuit faults.
Built for longevity, the CPD4800 includes a removable front grille for quick cleaning of air filters, maintaining optimal cooling in challenging environments. With Stereo, Parallel and Bridge modes, a switchable limiter, variable-speed fans and robust all-steel construction, CPD4800 delivers the dependable power professionals rely on.
| Specification | Value |
|---|---|
| Amp Channels | 2 |
| Topology | Class H |
| 8Ω | 2 x 1000 W |
| 4Ω | 2 x 1500 W |
| 8Ω Bridged | 1 x 3000 W |
| Input Connectors | 2 x XLR Socket |
| Output Connectors | 2 x 4 Pole speaker connector, 2 x binding posts |
| Link Connectors | 2 x XLR Pin |
| Mode Switch | Parallel / Stereo / Bridge Mode / Limiter switch |
| Slew Rate | >40 V / us |
| Output RMS Voltage (V) | 89.5 V |
| Maximum input Level | 22 dBu (9.7 Vrms) |
| Crosstalk | <-75 dB |
| Amplifier Frequency Response | 20 Hz – 30 kHz |
| Amplifier Input Impedance | 20 KΩ |
| Damping Factor | > 300 |
| SNR | ≥100 |
| Protection | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Main Power | 110-120 V AC or 100 V AC or 220-230 V AC or 240 V AC ~ 50/60 Hz |
| Included Accessory | User Manual |
| Unpacked – Height (mm) | 88 |
| Unpacked – Width Front (mm) | 483 |
| Unpacked – Width Rear (mm) | 483 |
| Unpacked – Depth (mm) | 450 |
| Packed – Height (mm) | 200 |
| Packed – Width Front (mm) | 542 |
| Packed – Width Rear (mm) | 542 |
| Packed – Depth (mm) | 580 |
| Weight – Nett (Kg) | 23.5 |
| Weight – Gross (Kg) | 25 |
